Hawkeye

Hawkeye Captain H 10.2" FPV Monitor DVR HDMI Input 5.8GHz/6-7-8GHz 232CH Dual Receiver High Brightness 1000 Lux

Hawkeye Captain H 10.2" FPV Monitor DVR HDMI Input 5.8GHz/6-7-8GHz 232CH Dual Receiver High Brightness 1000 Lux

通常価格 $349.99
通常価格 セール価格 $349.99
セール 売り切れ
配送料はチェックアウト時に計算されます。

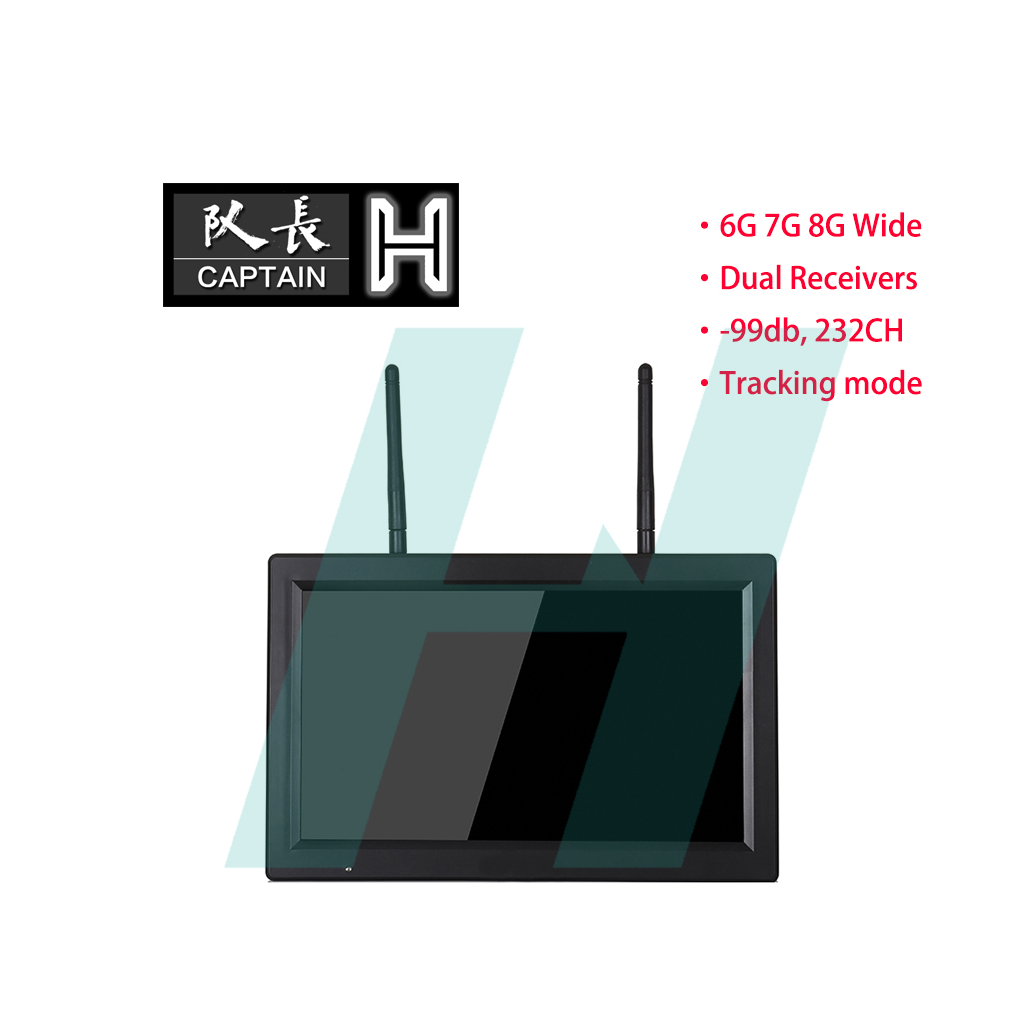

Hawkeye Captain H 10.2" FPV Monitor with DVR, HDMI & Dual Receivers

The Hawkeye Captain H 10.2-inch FPV Monitor is designed specifically for drone pilots and aerial photography enthusiasts. Featuring a high-brightness 1000 lux display, built-in dual receivers, and an integrated DVR recording system, this all-in-one monitor delivers reliable performance in any flying environment.

Whether you're flying FPV racing drones, long-range rigs, or aerial photography platforms, the Captain H ensures clear, uninterrupted video with zero delay and no blue/black screen issues.


🚀 Key Features

  • Ultra-Bright Display (1000 Lux)
    Perfect for outdoor flying with excellent visibility even in direct sunlight.

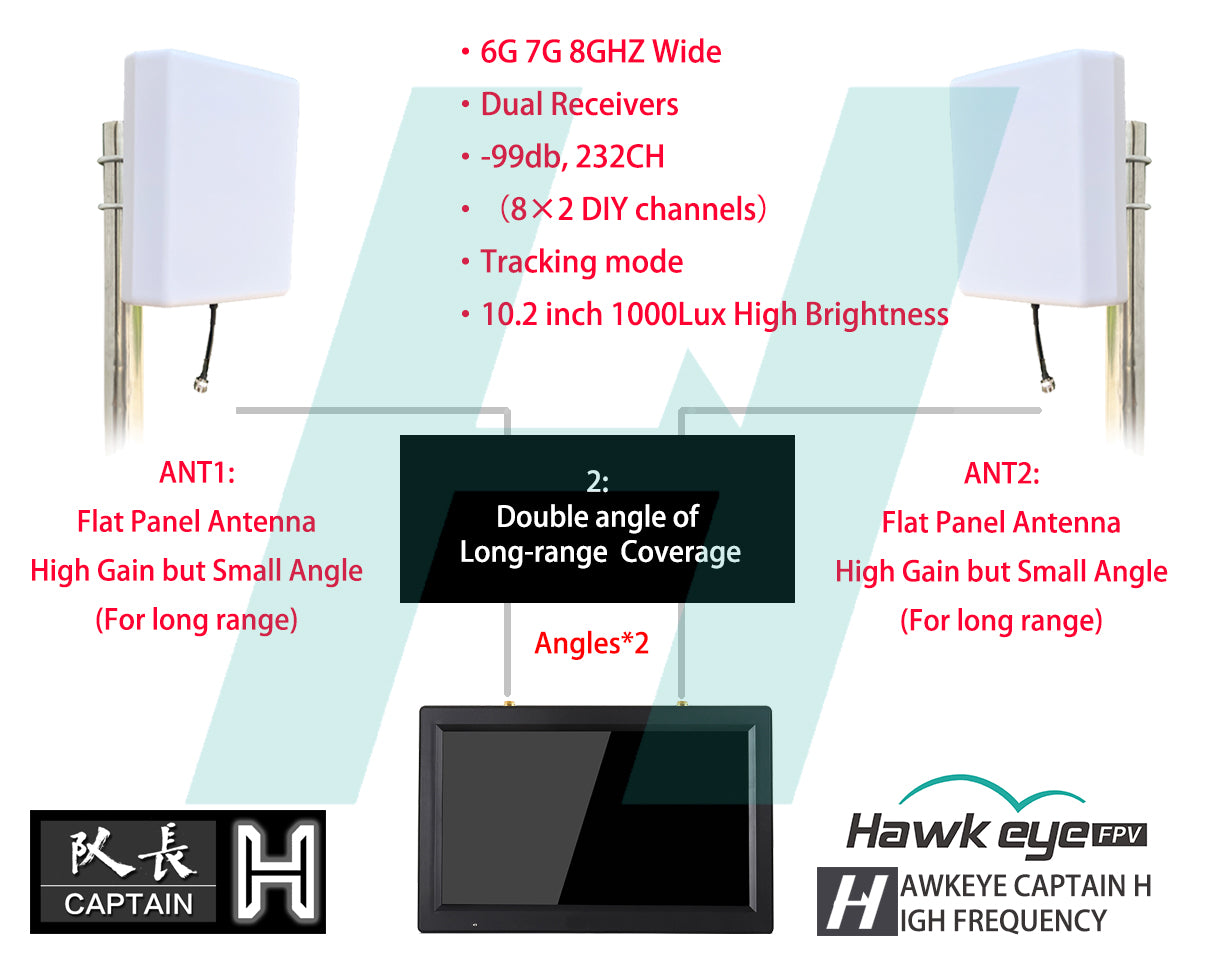

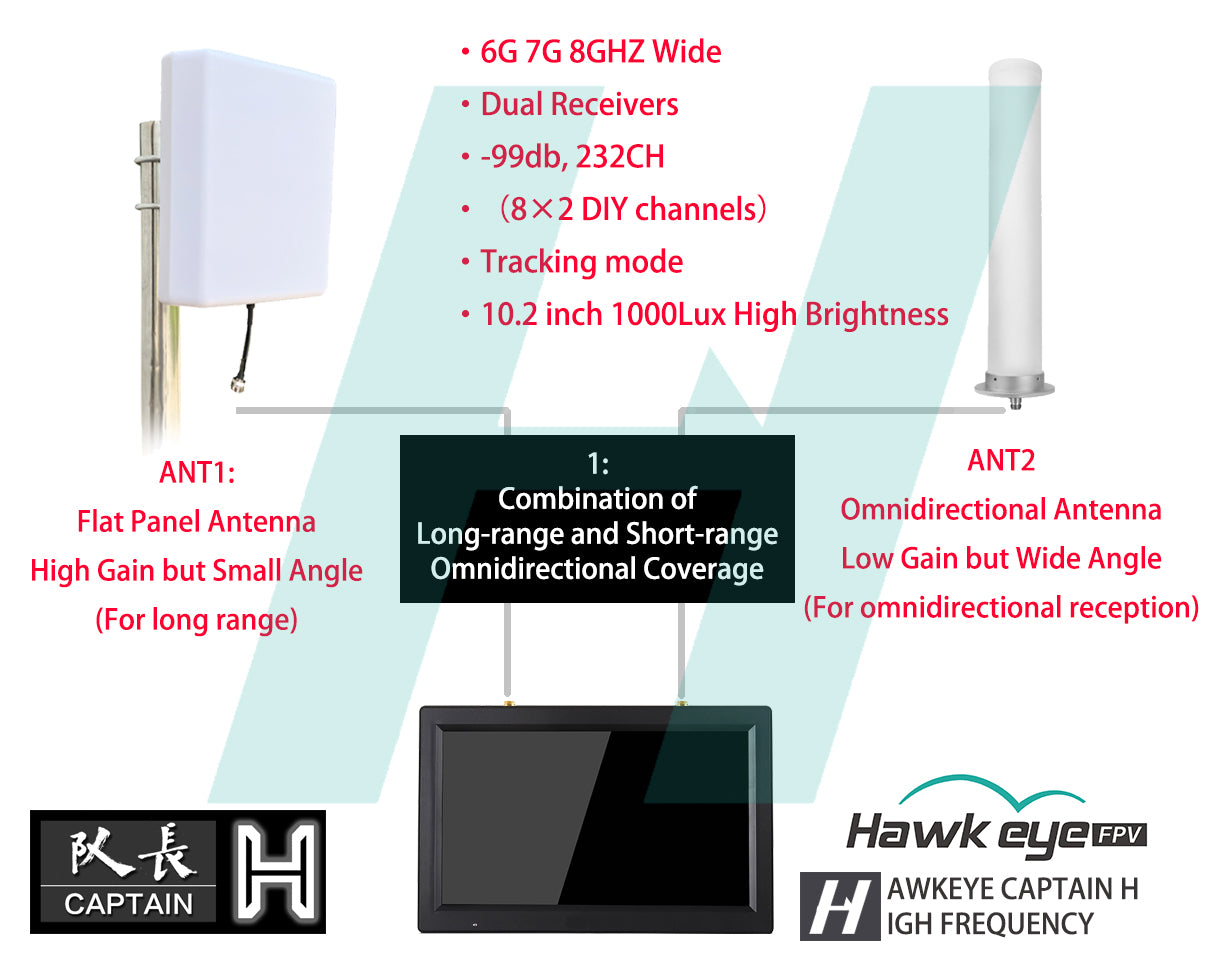

  • Built-in Dual Receivers (232 Channels)
    Supports 5.8GHz / 6GHz / 7GHz / 8GHz bands for maximum compatibility and signal reliability.
  • Integrated DVR Recorder
    Record your flights in the background without affecting live video performance.
  • Zero Delay Video Transmission
    Smooth real-time FPV feed with no lag, no blue screen, and no signal drop interruptions.
  • HDMI Input Support
    Easily connect external devices such as simulators, cameras, or video sources.
  • Auto & Manual Channel Scan
    Quickly find the best signal without the need for DIP switches.
  • Tracking Mode
    Enhanced signal tracking for stable reception during flight.

📊 Specifications

  • Screen Size: 10.2 inch LED
  • Resolution: 1024 × 600
  • Brightness: 1000 Lux
  • Aspect Ratio: 16:9
  • Response Time: 10ms
  • Color System: PAL / NTSC

Power:

  • Input Voltage: 3S–6S Battery
  • Current: 1.3A @3S / 600mA @6S
  • 5V Output: 1A (when input >12V)

Video:

  • Input: AV (PAL/NTSC), HDMI
  • Output: AV
  • DVR Resolution: D1 / VGA / QVGA

Storage:

  • TF Card Support: Up to 64GB

Receiver:

  • Channels: 232CH
  • Sensitivity: -99dB
  • Antenna Interface: SMA

📏 Dimensions & Weight

  • Monitor Size: 265 × 170 × 31mm
  • Packing Size: 300 × 200 × 60mm
  • Weight: 1.13kg

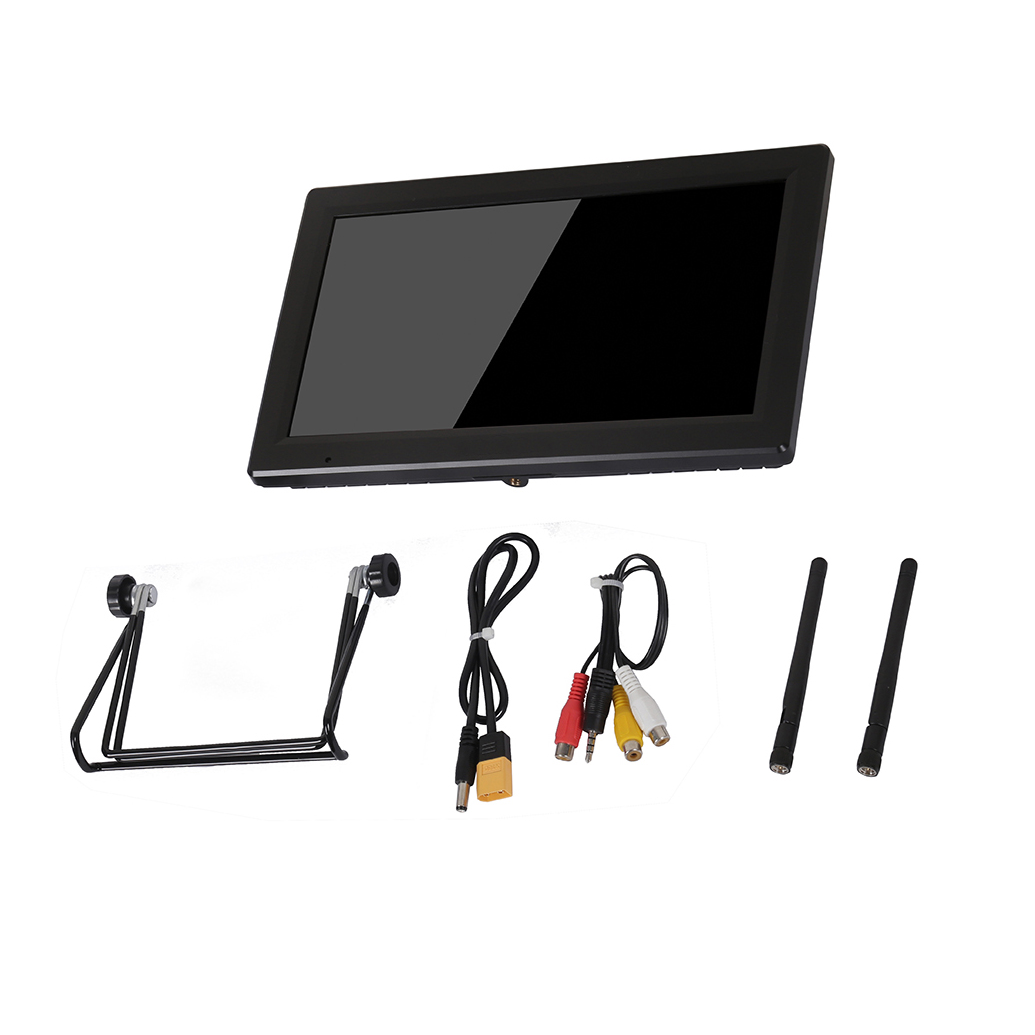

📦 Package Includes

  • 1 × Hawkeye Captain H 10.2" FPV Monitor

Download the manual here!
