Hawkeye HD FPV Video Transmission System Combo – 720p 60FPS Low Latency Air Unit + HD Goggles (10KM Range, 5.8GHz)

🚀 Hawkeye HD FPV Video Transmission System (Air Unit + Goggles Combo)

Experience crystal-clear digital FPV like never before with the Hawkeye HD Video Transmission System Combo. Designed for pilots who want smooth, low-latency video and long-range reliability, this all-in-one solution delivers immersive HD flight performance without breaking the bank.

With 720p @ 60FPS live video, as low as 35ms latency, and up to 10KM transmission range, this system is ideal for freestyle, long-range, and cinematic FPV builds.

✨ Key Features

• 📡 HD Digital FPV System – 720p/60fps real-time video transmission
• ⚡ Ultra-Low Latency – As low as 35ms for responsive control
• 🌍 Long Range Capability – Up to 10KM (FCC, optimal conditions)
• 📶 5.8GHz Transmission – Stable signal with dual antenna (2T2R) design
• 🎥 Integrated HD Recording – Save footage in MP4 format
• 👓 Included HD Goggles – 1280×720 resolution with 75° FOV
• 🔧 Betaflight Ready – Compatible with Betaflight 4.3.0+
• 🔋 Wide Voltage Input – Supports 2S–6S setups

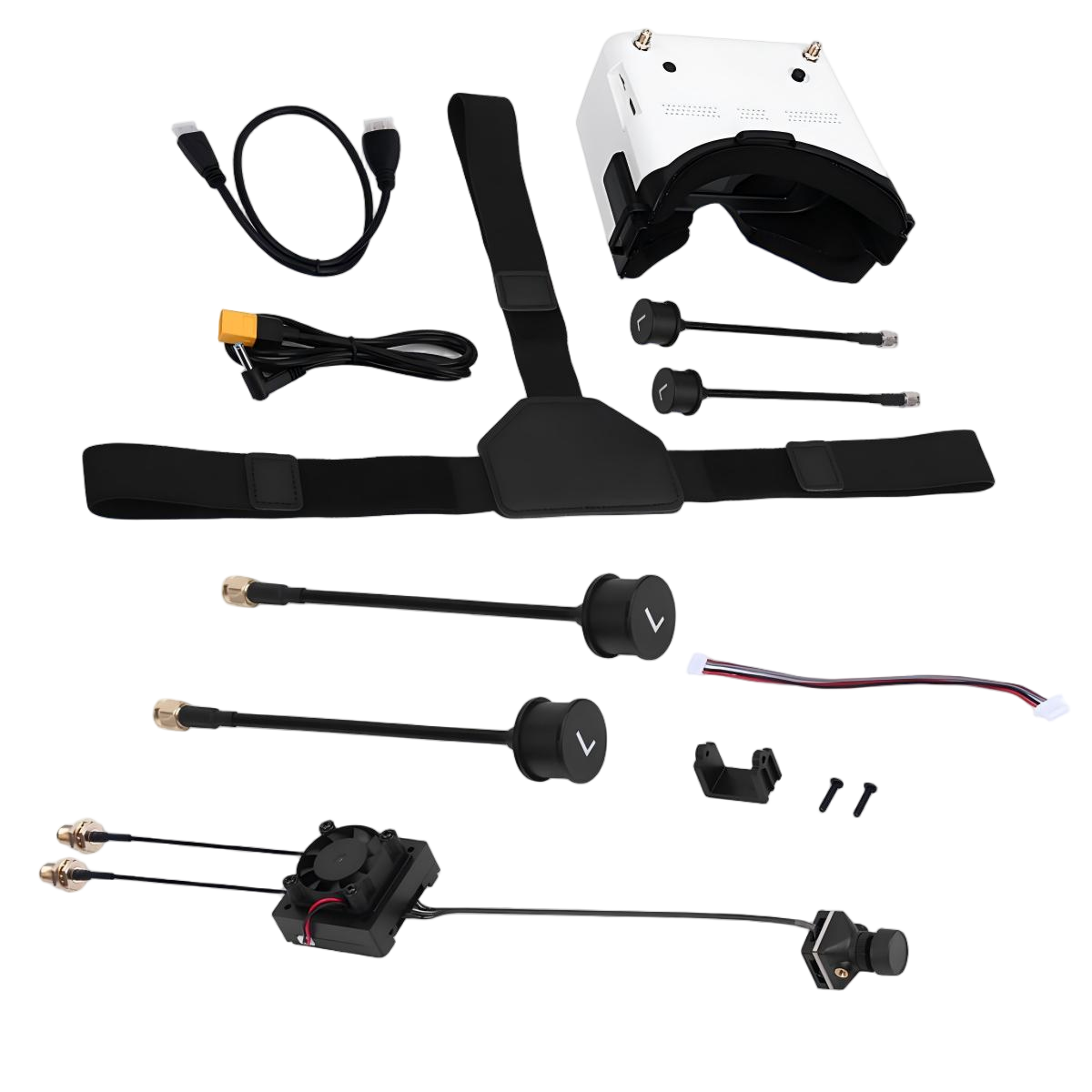

📦 What’s Included

• 1× Hawkeye HD Air Unit (with camera)
• 1× Hawkeye HD FPV Goggles


🔍 Technical Specifications

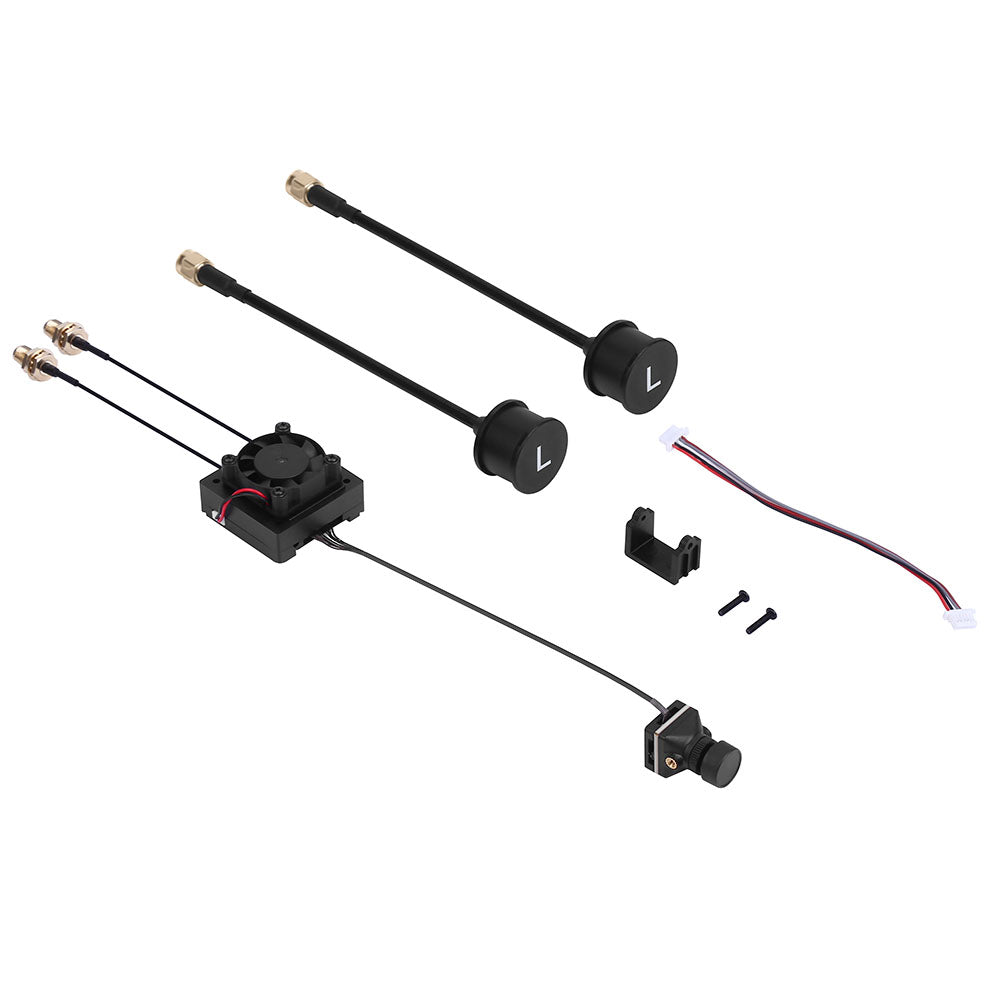

📡 Air Unit

• Weight: ~32g (with camera)
• Dimensions: 32.8 × 32.8 × 13 mm
• Input Voltage: 7.4–26.4V (2S–6S)
• Camera Sensor: 1/2.8" CMOS
• Lens FOV: 140° / 155° selectable
• Video Format: MP4
• Operating Temp: -10°C to 40°C

📶 Video Transmission

• Frequency: 5.725–5.850 GHz
• Power Output: FCC: <33 dBm / CE: <14 dBm
• Latency: As low as 35ms
• Range: Up to 10KM (FCC conditions)
• Bandwidth: Up to 20 MHz
• Antenna Setup: Dual Antenna (2T2R)

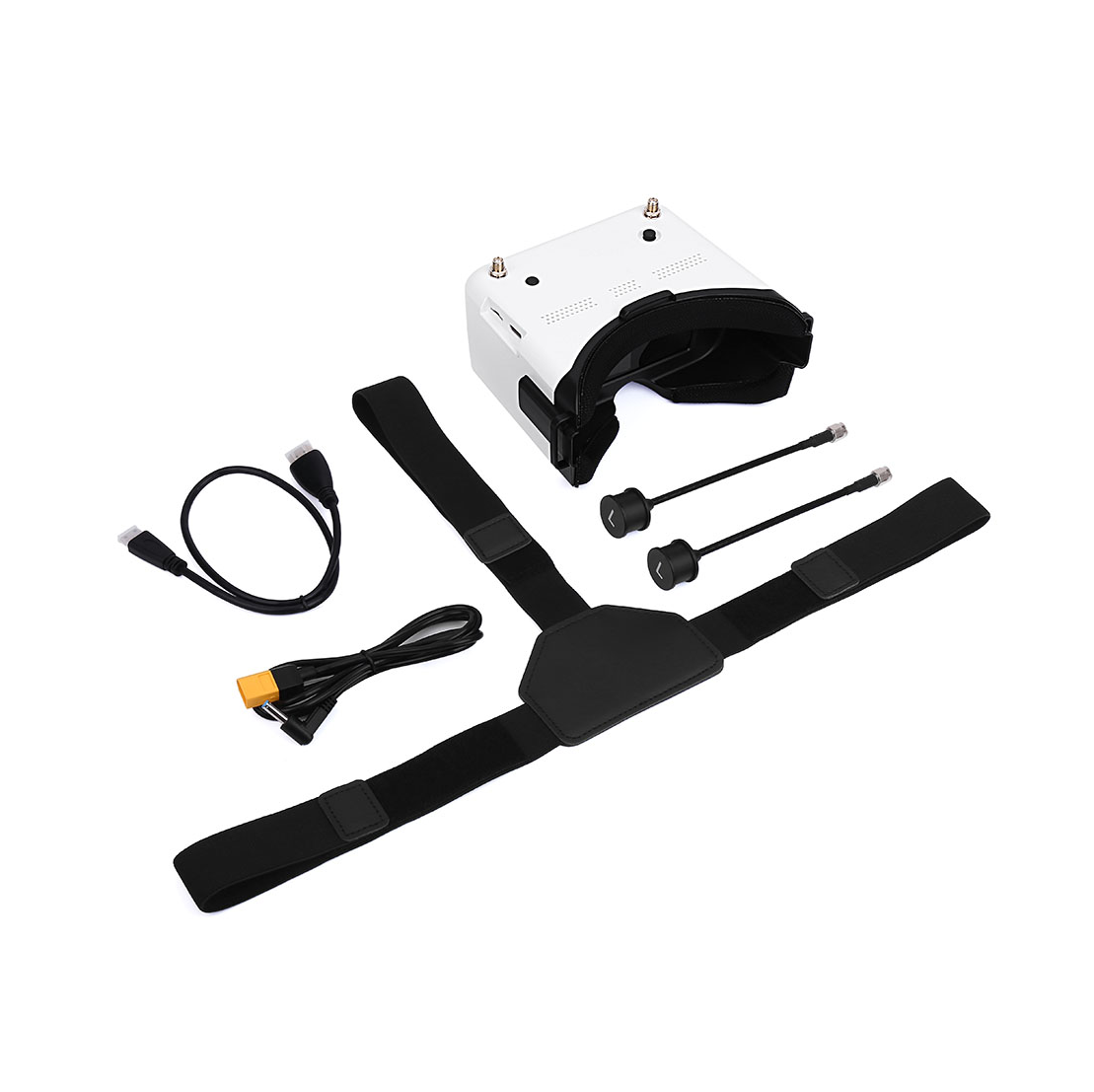

👓 HD FPV Goggles

• Resolution: 1280×720 @ 60fps
• Screen Type: LCD
• FOV: 75°
• Weight: ~350g (without antennas)
• Power Input: 7.4–26.4V (2–6S)
• HDMI Output: Mini HDMI 1080p60
• SD Card Support: Micro SD (up to 64GB)
• Antenna Port: SMA Female

🎯 Why Choose the Hawkeye HD System?

This system is perfect for pilots who want to transition from analog to digital FPV without the high cost of premium ecosystems. It delivers a solid balance of performance, range, and affordability, making it a strong competitor to entry-level digital FPV systems.

⚠️ Note

Transmission power and frequency availability may vary depending on your region. Always follow local regulations when operating FPV equipment.

Download the manual here!
